Grouping form fields for more context

Published: August 14, 2025 by Matze – 1 Comment Last update: August 10, 2025

When I first stumbled upon fieldset and legend, I didn’t know much about HTML and especially not about accessibility. Everything I noticed was the special way a legend is displayed inside a fieldset – or rather: alongside the border of a fieldset.

Fast forward to (kind of) today: while working on a contact form, I first could get my hands on this element and learned more about it.

What is a fieldset?

Every so often I’m surprised how well chosen names in HTML are. fieldset is no exception here. It’s basically a list of form fields (inputs, selects, textareas). It groups all fields inside of it, and makes it a set of fields. And the legend is used as caption of the fieldset (and ultimately it becomes a caption for all of the grouped form fields).

A simple example of a fieldset looks like this:

<fieldset>
	<legend>Date</legend>
	<label for="date-month">Month</label>
	<input name="date[month]" type="number" id="date-month">
	<label for="date-day">Day</label>
	<input name="date[day]" type="number" id="date-day">
	<label for="date-year">Year</label>
	<input name="date[year]" type="number" id="date-year">
</fieldset>Code language: HTML, XML (xml)

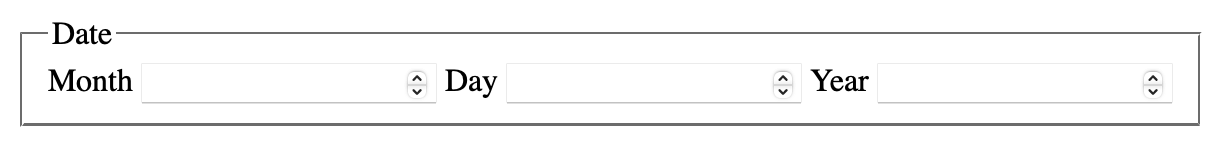

Which results in this:

In the image you see the default design for a fieldset: It has a border, that is partly interrupted by the legend. Something, that is not the easiest to achieve with other elements with CSS only. However, in the wild, you won’t often see it like this.

Why does it matter?

While for users capable of browsing websites visually, a fieldset often stays hidden, since the default styling usually is changed. Only the legend is visible as caption for a group of fields. For screen reader users, it’s a whole different story if they use it to navigate through the content via keyboard. For every field inside the fieldset, the screen reader announces that it is part of a group as well as the caption. It makes sure that the user is always aware of the context of the group and that the current active field is part of a specific group.

VoiceOver for example will announce the fieldset as “Date, group”:

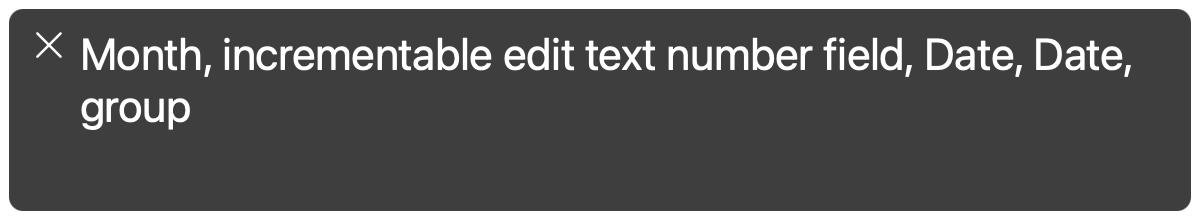

When navigating to the first form field “month”, VoiceOver will announce it as “Month, incrementable edit text number field, Date, Date, group”.

Additionally, by using the disabled attribute, you can easily disable a whole group of fields within the fieldset. Feels a little bit like magic. Such disabled fields are neither editable (they ignore user inputs completely), nor will they be submit in a form.

One note though: think about it first before using it. That is also true for a fieldset as a whole.

Ensure fields inside a fieldset are actually connected to each other and even require an identical context. Otherwise, it just makes the announcement more verbose as it should be, since the value of the legend will always be announced to screen reader users (in case of VoiceOver users often even twice). Use it only if the connected fields are not self-explaining if they are used alone, if you can’t properly edit a field the right way without knowing about the context of the group. While connecting multiple fields to enter a date with month/day/year actually will tell you (by a properly set legend) that you’re about to fill out a date, connecting two fields for first and last name won’t have any positive effect, since they can be filled correctly by their own without knowing that the other field exists.

Usage examples

Having multiple choice questions, e.g. in a survey, is an ideal example in grouping form fields. You can use the legend as question and radio buttons as the answers:

<fieldset>
	<legend>When did you hear about fieldsets the first time?</legend>

	<input type="radio" id="before-2000" name="eyes-opened" value="before 2000" />
	<label for="before-2000">Before 2000</label><br />

	<input type="radio" id="between-2000-2009" name="eyes-opened" value="2000 – 2009" />
	<label for="between-2000-2009">Between 2000 and 2009</label><br />

	<input type="radio" id="between-2010-2019" name="eyes-opened" value="2010 – 2019" />
	<label for="between-2010-2019">Between 2010 and 2019</label><br />

	<input type="radio" id="today" name="eyes-opened" value="2020 – today" />
	<label for="today">Between 2020 and today</label><br />
</fieldset>Code language: HTML, XML (xml)

It could also be used to connect fields for a day, a month and a year for individual input fields to select a specific date (as seen in the first example), as well as hours and minutes to select a time (if native date and time pickers aren’t an option). Or you could have different fields for a credit card number by splitting them into four digits each. You see, there are many possibilities to use fieldset elements, just don’t overuse them – because with many possibilities comes great responsibility – or so.

Make also sure to always test your fieldset elements with a screen reader to see whether adding a context in such a way is useful. This will make it easier to distinguish whether you should use a fieldset or better use non-connected single form fields.

Note: This post has originally been published via the HTMHell advent calendar on day 21.

Get it into WordPress

My plugin Form Block has a fieldset block builtin, which allows you to group fields into a fieldset without the hassle to know the underlying code. It already handles all the necessary things for you.
